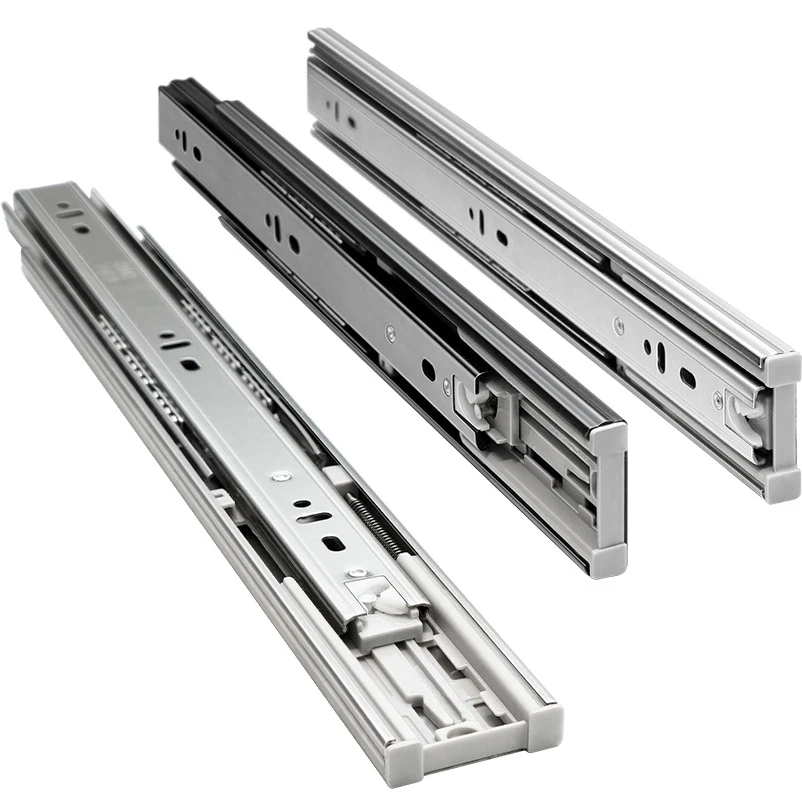

Push-to-open Slide Rails
Our Push-to-Open Slide Rails are intended for drawers that open without a conventional handle. Pressing the closed drawer activates the release mechanism, allowing the drawer to move outward so the user can pull it open manually.

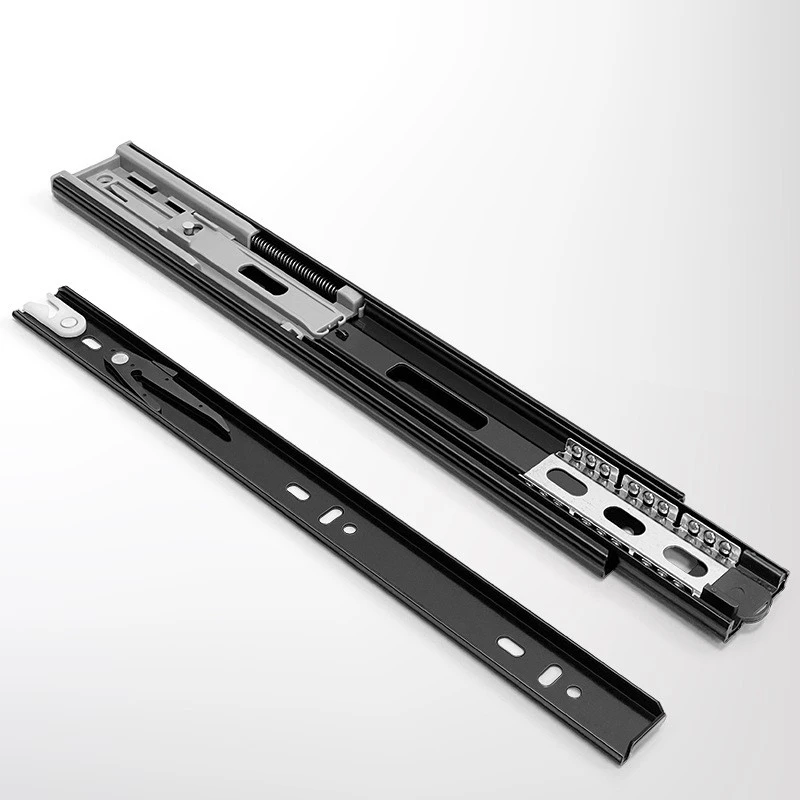

The track body is made from 1.2 mm cold-rolled steel with a black electrophoretic finish. A composite push mechanism and ball-bearing structure support everyday use in handleless furniture systems.
|
Parameter |
Specification |
|
Track material |
Cold-rolled steel and composite mechanism |
|
Track thickness |
1.2 mm |
|
Available lengths |
250–500 mm |
|
Stated load capacity |
Up to 25 kg per set |
|
Surface finish |
Black electrophoretic coating |
|
Trigger force |
5–8 N |
|
Side clearance |
12.7 mm per side |
Push-release opening: Removes the need for a separate drawer pull when used in a compatible design.
Specified trigger force: The stated 5–8 N force provides a reference for evaluating the push mechanism.
Defined installation clearance: Helps manufacturers calculate the required drawer width.
Electrophoretic finish: Helps protect the steel track during normal indoor use.
- Handleless kitchen cabinets
- Minimalist bedroom furniture
- Living room storage units
- Office cabinets and drawers
We review drawings and samples for runner length, mounting dimensions, finish, packaging, and agreed structural requirements. Please provide the drawer layout and required side clearance for compatibility assessment.
We check track dimensions, coating condition, trigger response, and sliding movement before packing. Third-party inspection is available on request.
FAQ
Q: How does the push-to-open mechanism work?
A: Pressing the closed drawer activates the release mechanism. The drawer then moves outward for manual opening.
Q: What load capacity is specified?
A: The stated capacity is up to 25 kg per set. Confirm suitability for the selected length and installation.
Q: Can these rails be used with handleless drawer fronts?
A: Yes. They are intended for compatible drawer designs that use push-to-open operation instead of external handles.
