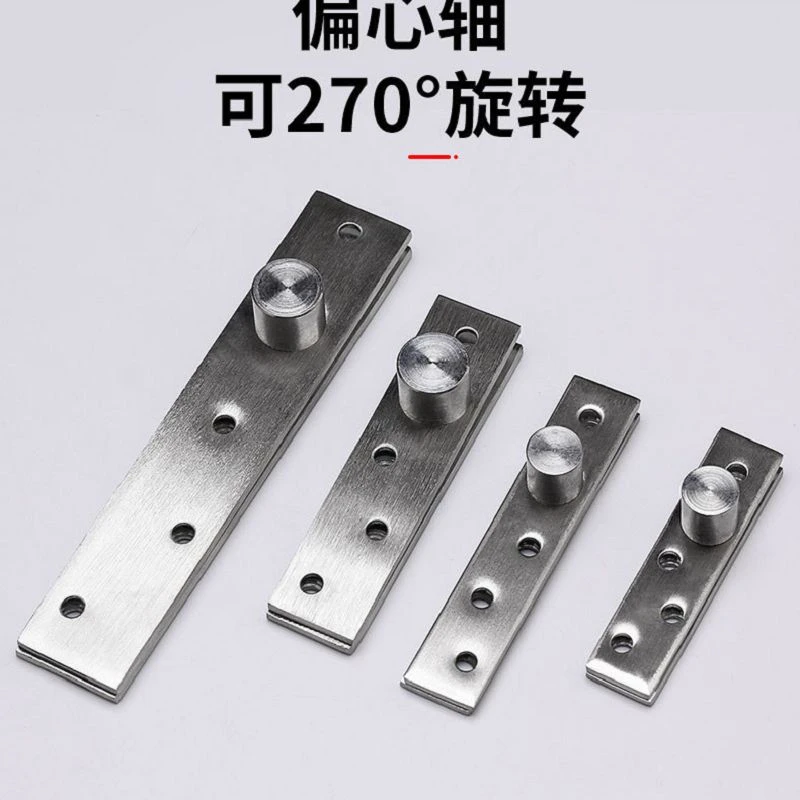

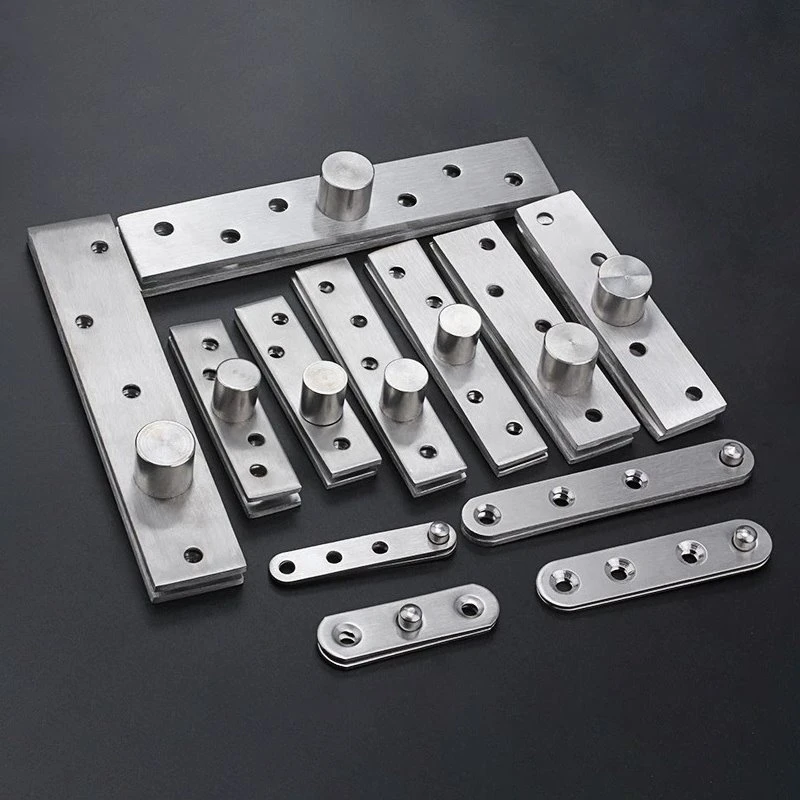

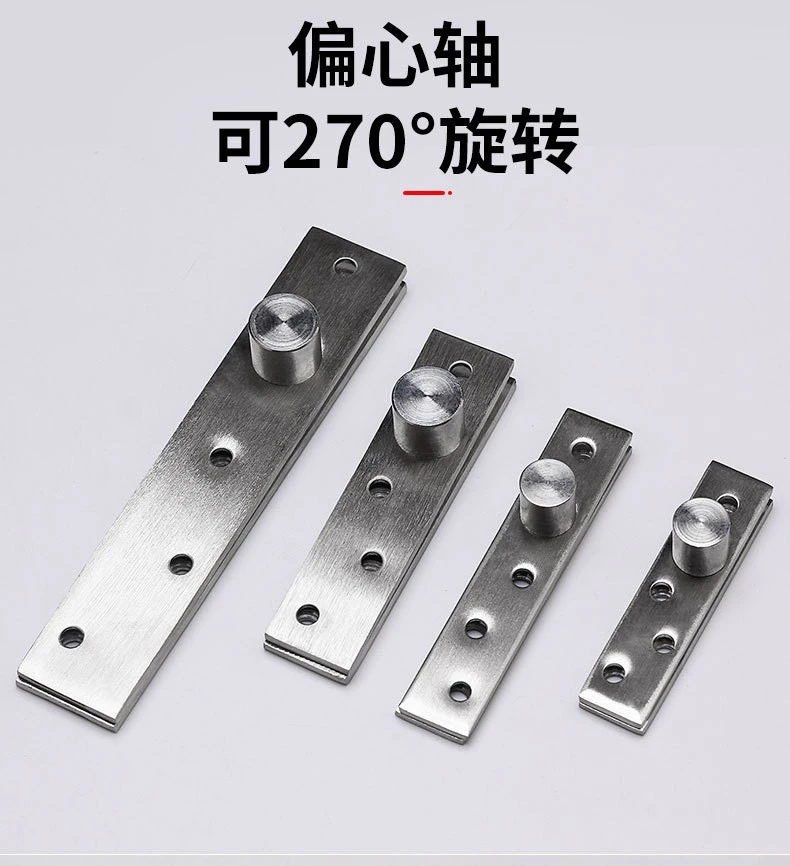

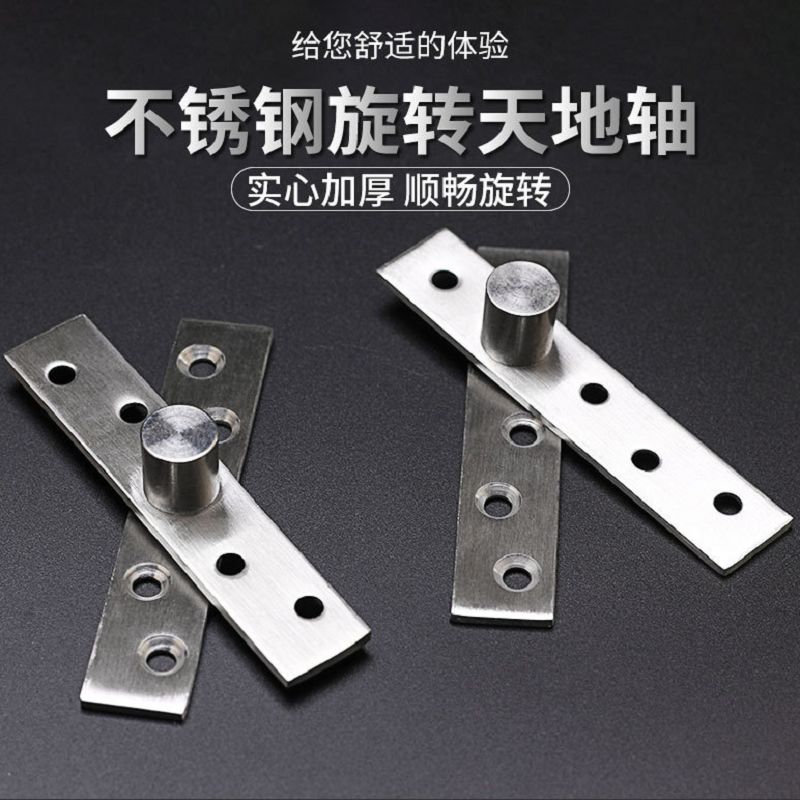

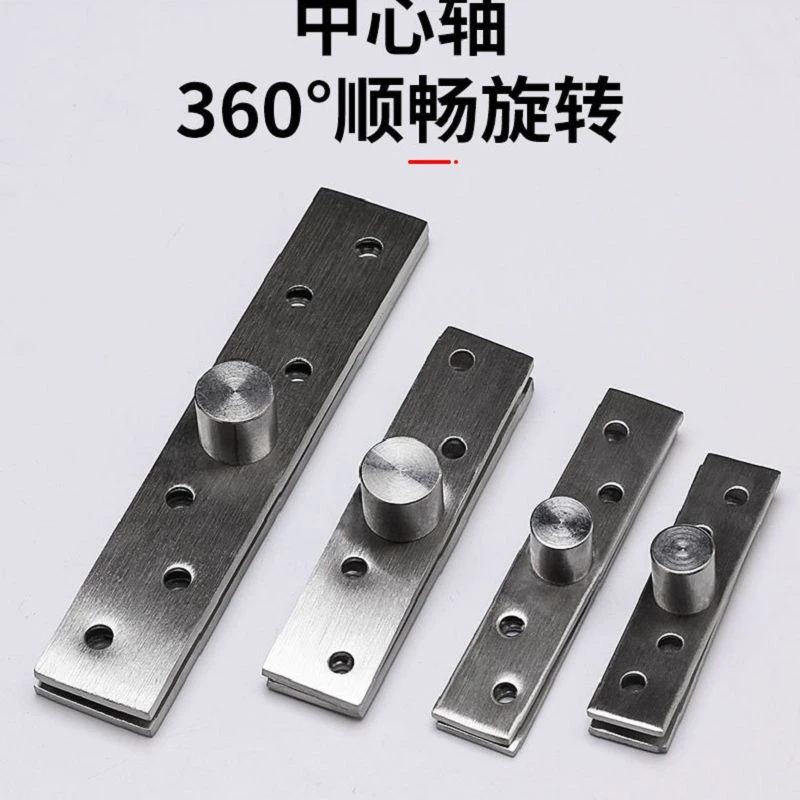

Pivot Hinges For Cabinet Doors
Our Pivot Hinges for Cabinet Doors support top-and-bottom door pivoting where conventional side-mounted hinges are not wanted on the visible door edge. This configuration suits selected concealed doors, wooden interior doors, and aluminum-frame door systems.
The stainless steel hinge range has two specified load options. Selecting the correct version requires checking the complete door weight, dimensions, pivot positions, and available installation space rather than relying on load rating alone.
|
Parameter |
Specification |
|
Product type |
Top-and-bottom pivot hinge |
|
Material |
Stainless steel |
|
Load capacity |
25 kg / 35 kg |
|
Maximum opening angle |
105° |
|
Suitable door types |
Wooden doors, aluminum-frame doors, selected concealed doors |
Door dimensions and mounting details must be confirmed before ordering.
Top-and-bottom pivot arrangement: Keeps the pivot hardware away from the conventional side-hinge position.
Two load options: The 25 kg and 35 kg versions support selection according to door weight and installation conditions.
Opening angle: Up to 105°, subject to the installed configuration.
Door compatibility review: Panel construction, fixing strength, and clearances should be checked before selecting a model.
- Concealed interior doors
- Custom wooden doors
- Selected aluminum-frame doors
- Bespoke interior and cabinetry projects
We review drawings and installation requirements for OEM and ODM inquiries. Sample development generally takes about 7 days after specifications are confirmed. The usual MOQ is 500–1,000 pieces, and standard production generally takes 10–15 days, subject to confirmation.
Production uses precision molds and CNC machining. The stated hole-position tolerance is within ±0.1 mm, and salt spray resistance is specified as more than 72 hours; the test method and acceptance criteria should be confirmed for the project. A 12-month warranty applies under the agreed terms.
FAQ
Q: Which doors can use these pivot hinges?
A: They are intended for wooden doors, aluminum-frame doors, and selected concealed-door systems. Confirm the door structure and mounting dimensions first.
Q: How should I choose the load rating?
A: Check the complete door weight, size, pivot arrangement, and fixing structure. Select the 25 kg or 35 kg version only after compatibility review.
Q: Can you make samples from our drawings?
A: Yes. Send the drawings and installation details for assessment before sample production.
